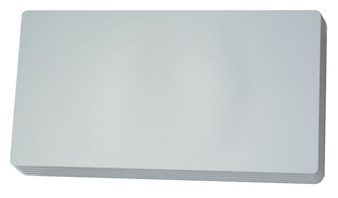

SAT Cube - Digital Satellite-Reception System for 2
ANTENNI EDESTÄ, VÄRI VALKOINEN. ANTENNI TAKAA
JOSTA KAKSI ULOSTULOA VIRITTIMILLE.
•
a revolution in satellite
reception
• compact outside dimensions
• same signal quality as with a 60 cm dish
• easy and discrete installation (does not derange the look of a building)
• for the reception of the most common satellite positions (e. g. ASTRA,
HOTBIRD)

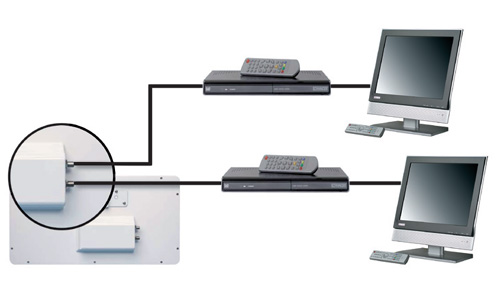

• connections for 2 single receivers or 1 twin receiver
• twin LNB integrated
• including mounting accessories for window-, wall-, mast- or balcony fixation Technical Specifications Connections 2 x F-connector female
Antenna gain 33 dBi at 12,7 GHz
Frequency range 10,70 - 12,75 GHz Input
950 - 1950 / 1100 - 2150 MHz Output
Operating temperature -30 °C bis +60 °C
Color white
Weight 5,3 kg
Dimensions (w x h x d) 475 x 259 x 74 mm
